Gimbal Expansion Joint

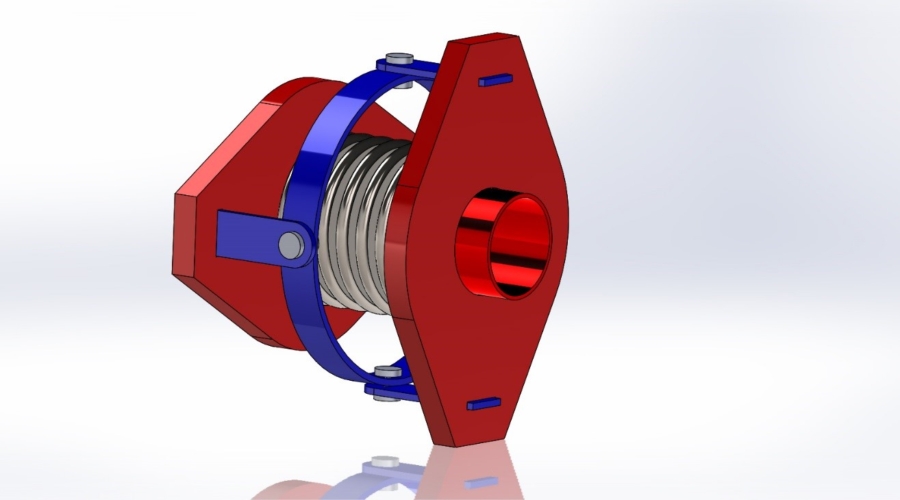

Gimbal expansion joints can absorb angular movements in multiple planes. The benefit of having a gimbal expansion joint is that it absorbs pressure thrust as well as torsional twist. This type of expansion joint consists of 4 hinge restraints that are welded to a flange with one common gimbal pin in the middle. These type of expansion joints are often used in a pair to absorb moments in multiple planes.
Specification
According to EN 14917
X = Applicable
(X) = Limited Use
| Type | Gimbal Expansion Joint |
| Pressure Thrust | Yes |
| Axial | |
| Lateral | Single-Plane Multi Plane |
| Angular | Single-Plane Multi Plane |
